Documentation Flexible Layout Section block for Gutenberg

Flexible Layout Section block

Use case of the Flexible Layout Section plugin

The Flexible Layout Section is a nestable container block for page sections — full-width backgrounds with controlled inner content width, responsive layout types, and spacing that stays predictable when blocks are nested.

Layout types

• Choose a direction / layout type in the block sidebar.
• Each type can have its own tablet and mobile overrides via the Desktop / Tablet / Mobile tabs.
• See the descriptions of flow, flex row, flex column and grid.

1) Flow

• Default vertical stack — like a normal document flow.
• Best for hero sections, text blocks, and simple stacked content.
• Use Gap to control vertical spacing between child blocks.

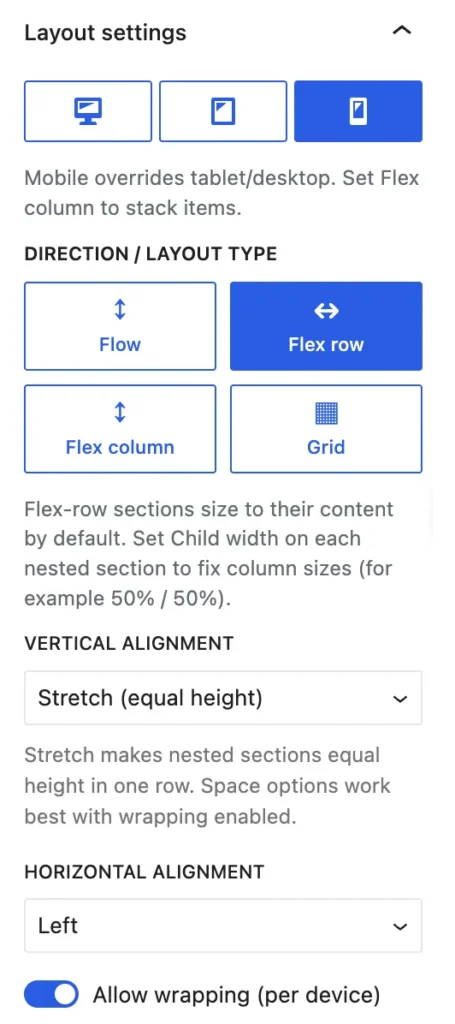

2) Flex row

• Horizontal layout: children sit side by side.
• Use Horizontal alignment (Left, Center, Right, Stretch), Vertical alignment, Wrap, and Reverse order.
• Stretch makes nested Flexible Layout Sections equal height in one row.
• Child width controls how wide each nested section is per breakpoint (mobile defaults to full width).

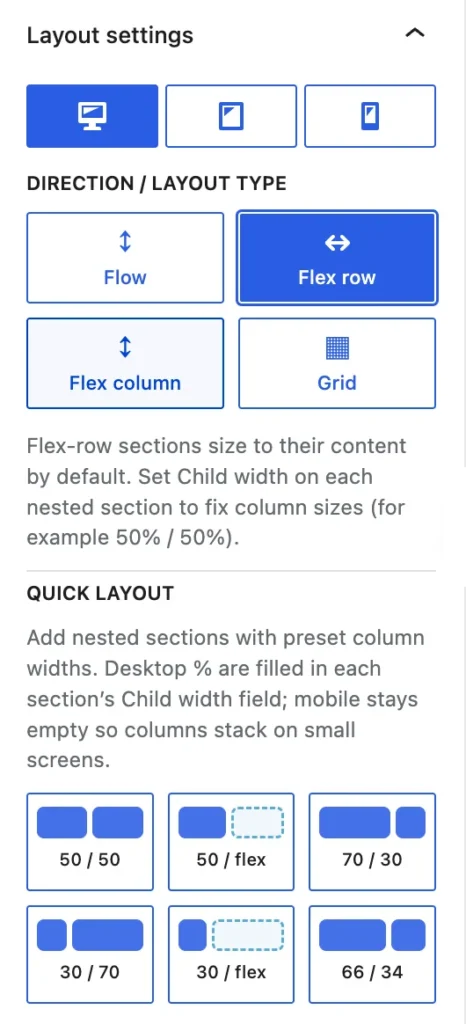

Flex row – Quick layout

• Flex row layout has special Quick layout functionality.
• Every quick layout option adds the nessesay nested sections with preset column widths. Values are stored in each section’s Child width field.
• Quick layout is visible if the main Flex row layout is still empty; to protect existing content.

Available flex row quick layout options

3) Flex column

• Vertical flex layout with alignment controls. Horizontal alignment positions items left, center, right, or full width; Vertical alignment controls distribution along the column (Top, Middle, Bottom, Stretch, Space between, and similar).
• Reverse order flips the visual order of children.

Flex column – Quick layout

• The Flex column layout has special Quick layout functionality.
• Edit multiple topics in one section with a shared background.
  • NOTE: If you are in Grid, it switches to the Flex column layout and adds the nested sections.
• Quick layout is visible if the main flexible column layout is still empty; to protect existing content.
• Every quick layout option adds the nessesay nested sections. Values are stored in each section’s Child width field.
• Choose the number of sections and click on ‘Add stacked sections’.

Available flex row quick layout options

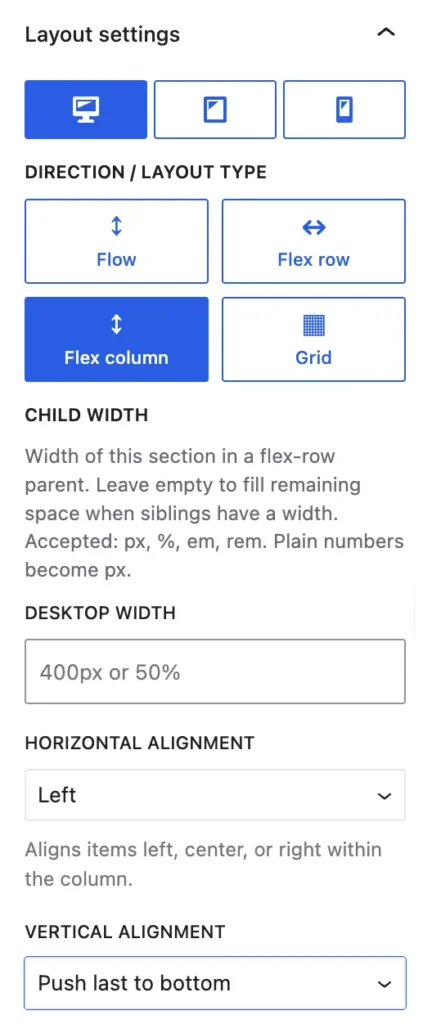

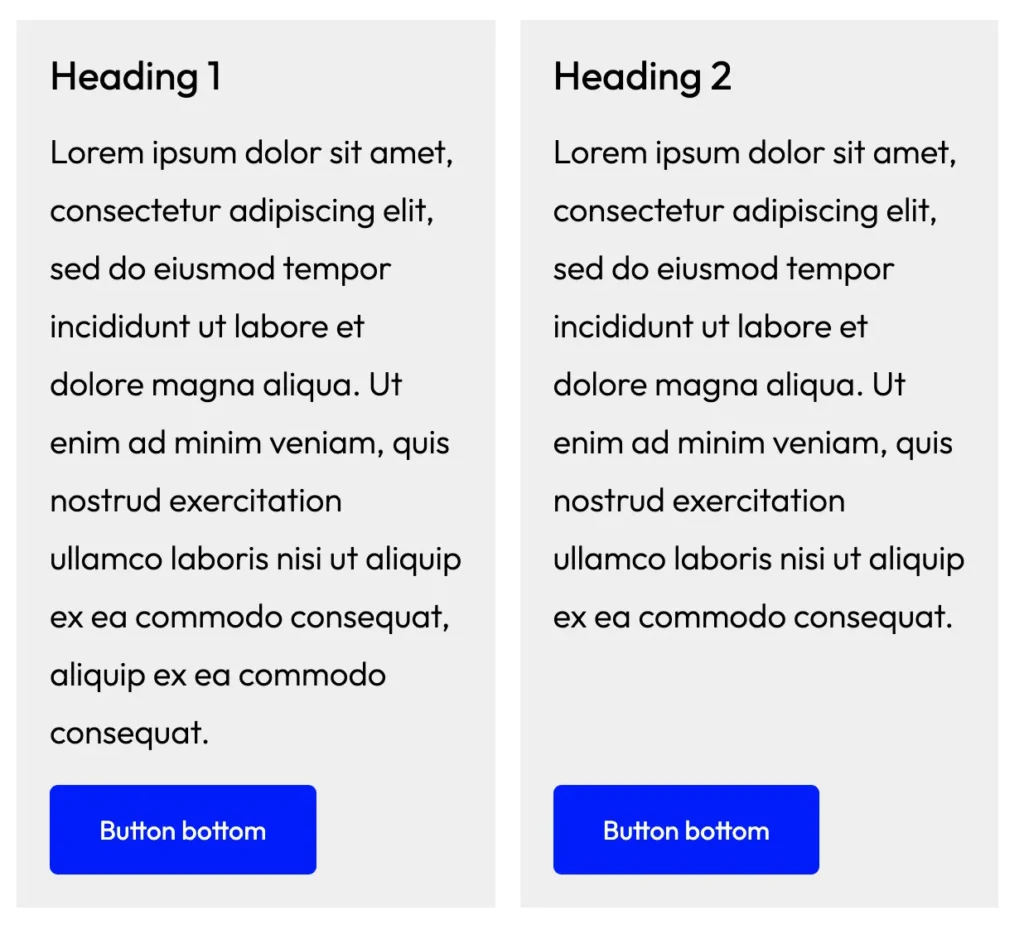

Push last block to bottom

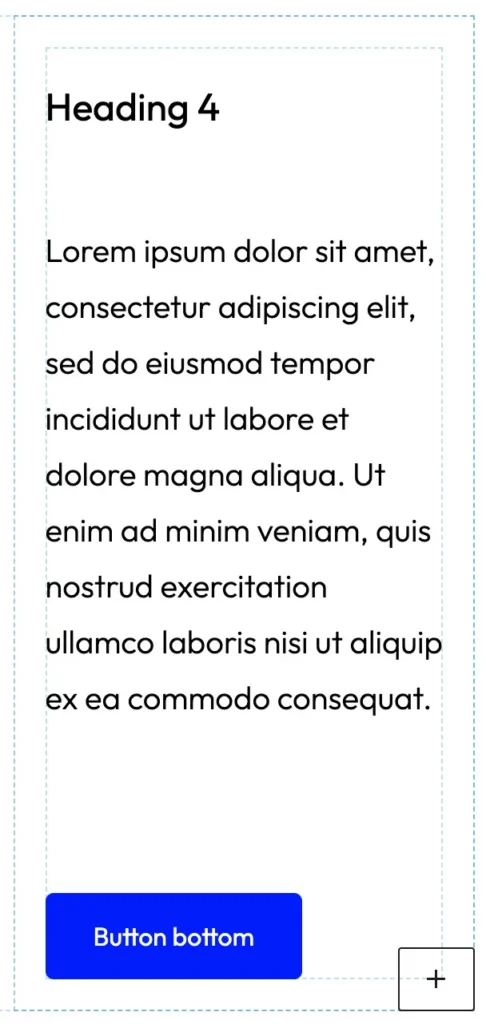

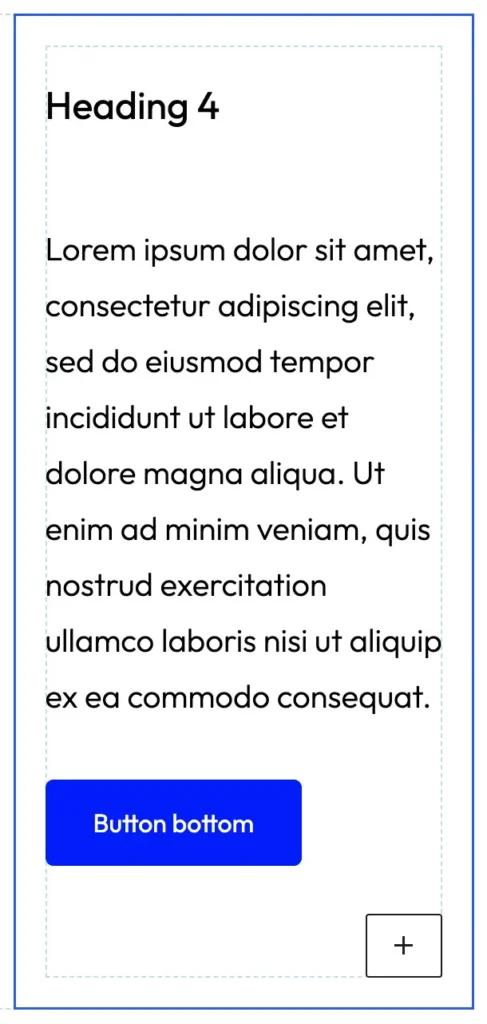

• Flex Column has an option that will make every designer happy: ‘Push last block to bottom’.
• The last block in a column is then assigned a margin:auto value and ‘sticks’ to the bottom of the column. This is ideal for columns with uneven content (such as text) that you want to be aligned at the bottom, like a button, a disclaimer, or anything else.
• Important: this is only useful if there are several Flex Columns placed in a Flex row section.

4) Grid

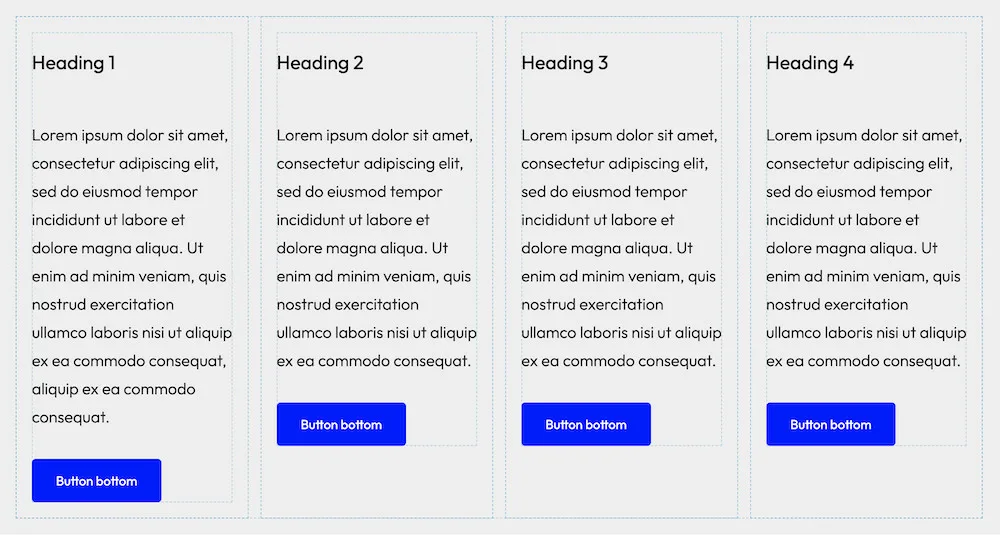

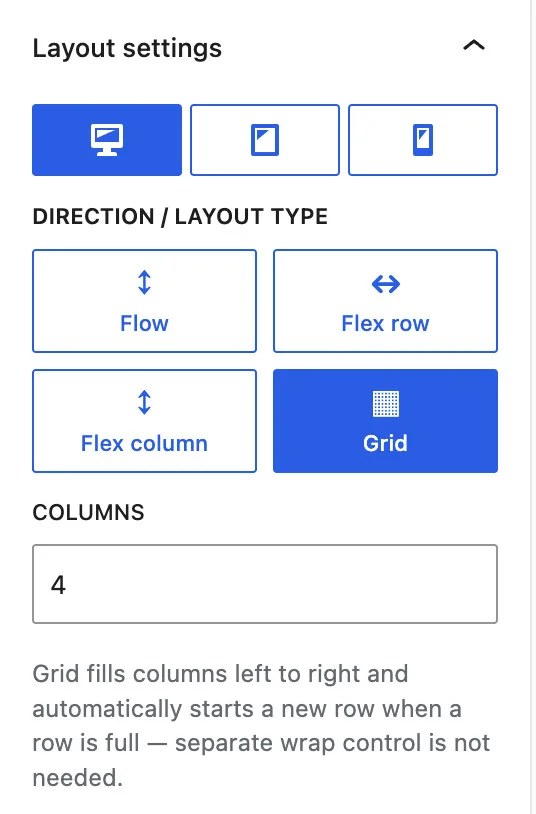

• CSS grid with a configurable number of columns.
• Toggle to insert a section in every column automatically.
• On smaller viewports you can override columns per breakpoint so content reflows cleanly.
• You can also specify the child width in pixels or percentages for each device (optional). If the combined width of the grid items exceeds 100%, excess items will wrap to the next line.
• Mobile order # sets the stacking order on mobile.

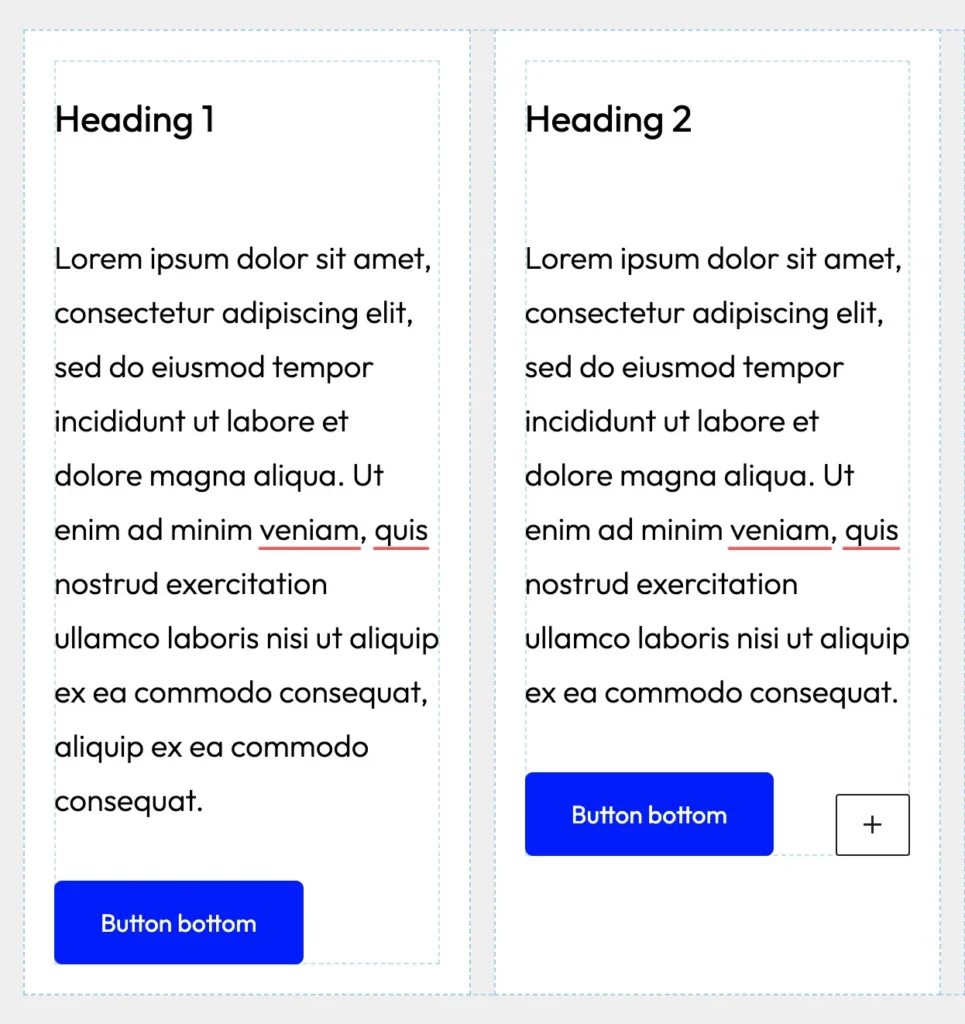

• Flexible layout sections in a grid always have equal height – automatically.
• Easy to create a bento-style grid: every child section can be a parent to other child sections. You can use flex-row within the grid (like nr. 1 and 2) and the equal height is always respected.

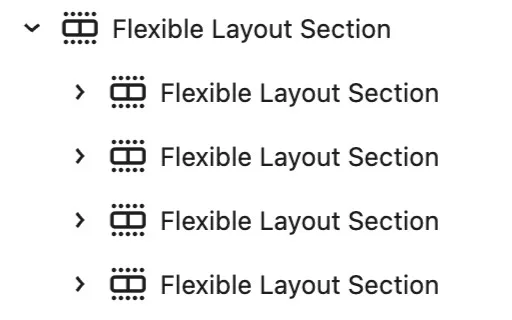

• You always start with a default grid of 2 or 3 columns. Every time you click on ‘Place sections in all columns’ you get an extra row of sections. In this example there were 3 rows.
• The next step is you click on one of the children (inner sections) you wish to use as a parent for other children, and you just add another Flexible Layout Section and choose the type (Flex-row or grid) and you are done.
• In this example, none of the block settings like gap, padding or margin, had to be adjusted; we just placed the sections, selected the style and picked a background color (optional), nothing else.
• The illustration shows both the frontend result and the internal section-structure: it’s really incredibly easy. On mobile, the whole design is stacking automatically.

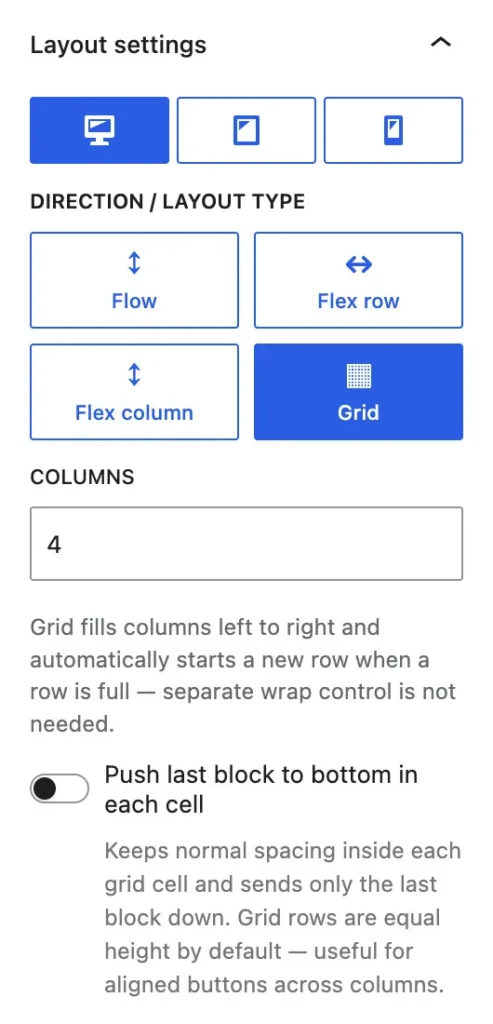

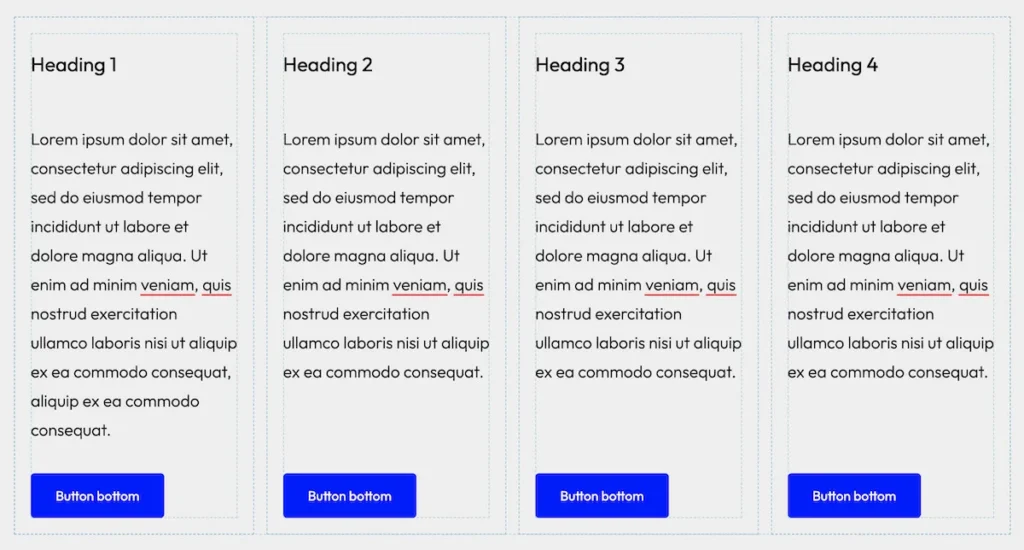

Push last block to bottom

• Grid also has an option to align the last block: ‘Push last block to bottom’.
• The last block in a grid column is then assigned a margin:auto value and ‘sticks’ to the bottom of the column. This is ideal for columns with uneven content (such as text) that you want to be aligned at the bottom, like a button, a disclaimer, or anything else.
• This is set with a toggle at the parent Grid block.

Grid vs flex row?

• Grid and flex row both place nested sections side by side, but they handle column widths differently.
• Picking the right one avoids confusion when you want equal columns versus an uneven split such as 30% / 70%.

Grid = equal columns

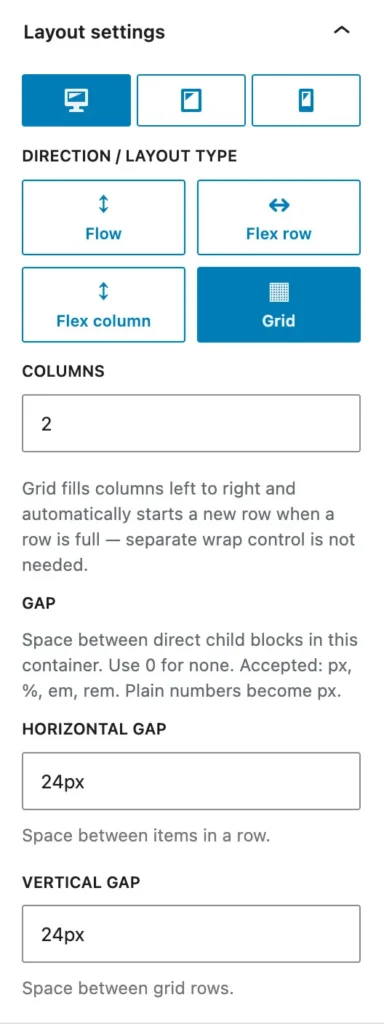

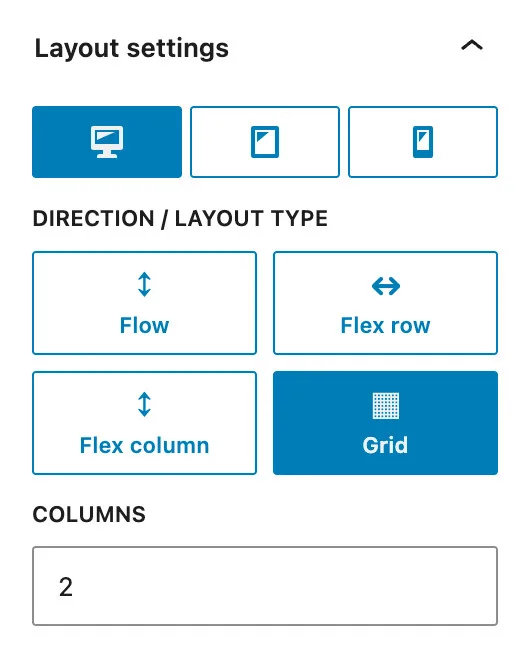

• When you set a parent section to Grid with 2 columns, each direct child gets the same width — a 50% / 50% split. With 3 columns, you get three equal tracks (33% / 33% / 33%), and so on. The plugin distributes space evenly; there is no per-child width control in grid layouts.
• That is intentional. Grid is best when you want a fixed number of equal columns and clean reflow on smaller screens (for example 3 columns on desktop, 2 on tablet, 1 on mobile). Nested sections inside a grid do not show child width in the sidebar because grid column sizing is controlled by the parent’s column count, not by individual children.

Flex row = custom column widths

• For unequal splits — 30% / 70% or 40% / 60%, a fixed sidebar width in px, and similar — use Flex row on the parent section instead of Grid.
• Select each nested Flexible Layout Section and set Child width on the Desktop (and optionally Tablet / Mobile) tab. Accepted units: px, %, em, rem.
• Leave Child width empty on a sibling when you want that section to fill whatever space remains. For example, set the left section to 350px and leave the right section empty — the right column grows to fill the rest of the row.

Which layout type should I use?

• Equal columns (50/50, three-up, four-up) — Grid.
  • Set the column count on the parent and override it per breakpoint if needed.
• Unequal columns (30/70, fixed sidebar, mixed px and %) — Flex row.
  • Child width on each nested section.
  • Flex row has quick settings.

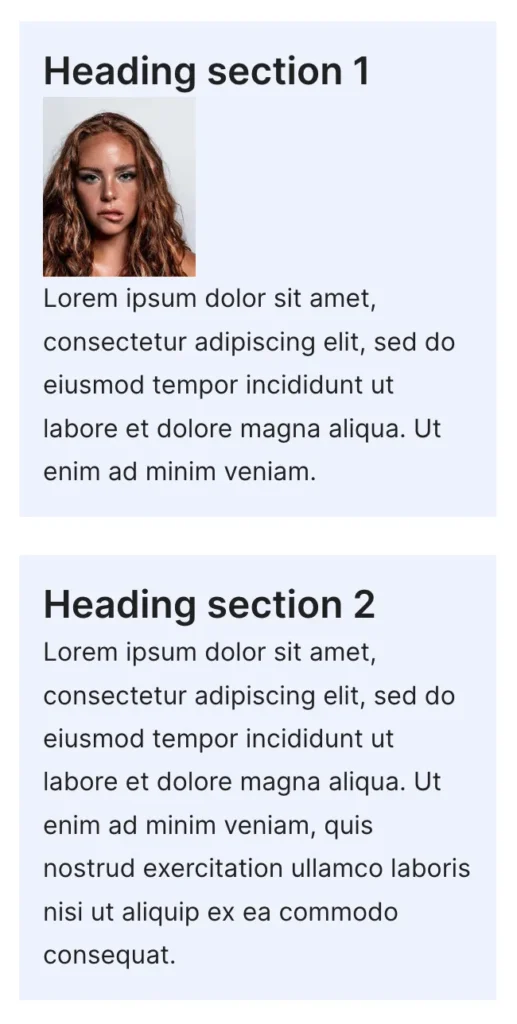

• Stack on mobile

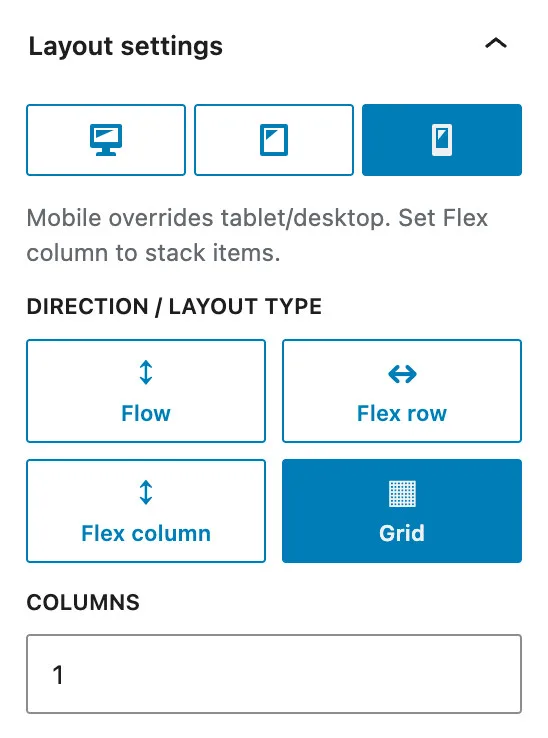

  • Grid: set columns to 1 on tablet or mobile.
  • Flex row: Use Child width 100% on mobile, or rely on the default full-width behavior when Child width is empty.

Block settings

Align

• The first thing most users set is Align.
• Align is not about the inner content width but the width of the Flexible Layout Section itself. The choice you make with Align also depends on whether you are going to use a full-width background or not.
• Width content cannot be wider than the width of the block itself, so your choice is leading for the content width.

Align None

• None assigns the Flexible Layout Section the default width set in the theme. If the theme values ​​(as with most classic themes) are not inherited by the Flexible Layout Section block, it is the value set in the settings page.
• None is usually a px value between 645-800px.

Align Wide-width

• Wide-width assigns the Flexible Layout Section the default wide-width set in the theme. If the theme values ​​(as with most classic themes) are not inherited by the Flexible Layout Section block, it is the wide-width value set in the settings page.
• Wide-width is usually a px value between 1200-1400px.

Align Full width

• Full width doesn’t limit the Flexible Layout Section block in any way. The width is everything from far left to far right.
• This is the width you choose to give your section a background that is the total width of your page.

Inner content width

• Inner content of a section, row block, group or div is one of the most important—and sometimes annoying— properties. This section explains how the Flexible Layout Section handles content width.
• The Flexible Layout Section plugin complies with WordPress standards, so Flexible Layout Section automatically works with the content widths of most FSE (Full Site Editing) themes.
• This is not always the case with classic themes; they often have their own way of handling content width. The theme then uses it’s container classes/variables, meaning a plugin, like the Flexible Layout Section, cannot retrieve those values.
• Below is the explanation of how the Flexible Layout section handles different situations.

Fallback values for classic and older themes

• Themes with no theme.json and no layout CSS variables → you get 1200px / 1400px fallbacks, not the theme’s actual content width.

Flexible Layout Section & different width situations

• A fallback is nice and standard practice. We did something better though.
• On the settings page you can see the found width settings of your theme and set your personal preferred width for content, wide-width and default custom max width.
• Every Flexible Layout Section, including all inner sections, has a separate width setting: theme content (none), theme width, full width and custom width. Those values are based upon the theme widths or, when not usable, the fallback. But as soon as you set your preferences for the theme content (none) and wide-width, the width will be based on those values. Automatically and for all Flexible Layout Sections.

Overview of width settings on the settings page

The settings page displays the detected theme width, if available, although this may not always be the case, particularly with classic themes. However, you do have the option to set custom values for:

• Theme content width (none)
• Theme wide width

This ensures that the widths you use match those defined in your theme. Flexibility is important.

• Theme — follows the theme content width.
• Wide — theme wide alignment width.
• Custom — your own max width per breakpoint (defaults come from Settings on this page).
• Full — inner content spans the full section width.

Child width (flex row and flow in grid)

• When this block is a direct child of a flex-row parent or a grid, you can set its width per device.
• For example 50% on desktop, 50% on tablet and 100% on mobile.

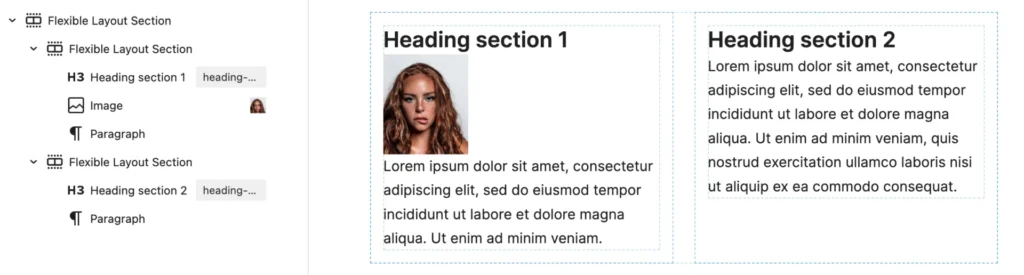

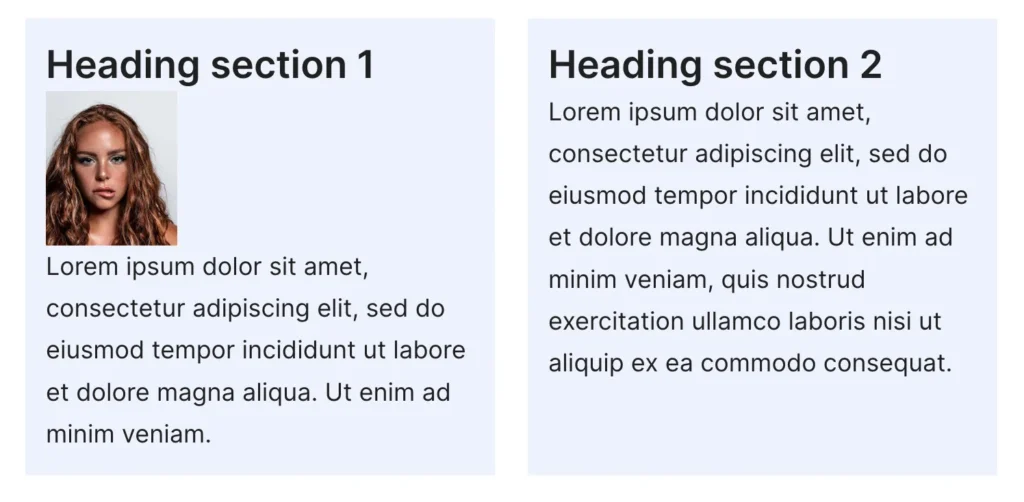

• When creating a section layout with inner sections, the inner sections are set automatically to a mobile child width of 100% to allow stacking.

Order mobile

• Visible on the mobile device tab only. Lower numbers appear first when flex items stack on mobile, without changing desktop order.

Gap

• Spacing between direct children inside the inner content area.
• When a parent uses Gap, nested children automatically have the block margins cleared so spacing is not doubled.
• Set vertical and horizontal gaps separately; values can differ per device.

• Standard Gutenberg controls on the outer section wrapper. Backgrounds and padding apply to the full aligned width; inner content width constrains the blocks inside.

Overlay & background

Overlay link

• The overlay link makes the whole section clickable while inner links and buttons stay usable.

Overlay link with URL from a custom field

• The overlay link makes the entire section clickable while inner links and buttons stay usable. This functionality also works also with values from custom fields. Select Dynamic URL; choose the Post Meta field and enter the Meta field key.
• Use complete URLs: https://your-domain.com.

Dynamic background

• In the block sidebar under Color, enable “Use custom field / dynamic image” and select a source: URL (with tokens such as {meta:field_key}), attachment ID, or post meta field key. The meta field can return an image URL or a media library attachment ID.
• Works with custom fields from ACF, ACPT, Meta Box, Modern Fields, or any plugin that stores the value in post meta.

Sections and padding

• The Flexible Layout Section block applies padding in a simple, predictable way so content stays readable on every device — including mobile and tablet.
• The site default is 20px on all sides (configurable under Settings → Flexible Layout Section → Settings). Unless you change it, every section — outer sections and nested inner sections — gets that padding on top, right, bottom, and left.
• Inner content width (theme content width, theme-wide width, or full width) controls how wide the content column is inside the section. It does not turn padding on or off. Padding always applies to the outer section wrapper; the inner area sits inside that padded box.
• Theme content width (none) — content is limited to the theme’s normal column width and centered inside the padded section.
• Theme wide width — content uses the theme’s wider column width, still centered inside the same padded section.
• Full width — the inner content area fills the space available inside the outer padding (edge-to-edge within the section, not the viewport).
• Nested sections (for example in a flex row 70/30 layout) each have their own padding. By default, nested sections in flex row or grid use full inner width so columns fill their slot correctly.
• Remove horizontal padding — in the block sidebar under Gap, there is a toggle that sets left and right padding to 0 for any section (outer or inner). The values appear explicitly in the Styles panel. Turn the toggle off to restore default padding on all sides.
• Adding or removing a background changes inner padding automatically.
• Backgrounds span the full aligned width of the section; default padding insets the content on all sides regardless of background.
• You can override padding at any time in the block Styles panel. After a manual change, spacing stays custom until you adjust it yourself.
• Use Remove horizontal padding when you want a quick way to drop side inset without editing each side manually.

Padding by inner content width

Setting	UI label	What it affects	Padding (default)	With “Remove horizontal padding”
none	Theme content width (none)	Inner column = theme content width (e.g. 740–960px), centered	All sides on the outer (each inner section has its own)	Top/bottom only; left/right = 0
wide	Theme wide width	Inner column = theme wide width (e.g. 1200px), centered	Same — all sides	Same — top/bottom only
full	Full width (no constraint)	Inner column fills the space inside the outer padding	Top/bottom only	–
Full with background	Full width (no constraint)	Inner column fills the space inside the outer padding	Same — all sides	Same — top/bottom only

Example of horizontal padding

• Nested sections (e.g. flex row 70/30)
• Each nested section is its own outer + inner pair. Each gets its own default padding (all sides). Nested sections in flex row/grid default to full inner width so columns fill their cell.
• PARENT (outer padding 20px all sides)
• └── INNER (flex row)
• ├── CHILD A (outer padding 20px all sides, inner width: full, 70%)
• └── CHILD B (outer padding 20px all sides, inner width: full, 30%)
• The toggle ‘Remove horizontal padding’ works on parent only, child only, or both — independently.

Alignment of section content

• Every section with the layout setting Flex column and Flex row has vertical en horizontal alignment settings. These settings determine what happens to the content of the section, or the blocks such as headings, paragraphs, images, etc.
• The standard layout setting Flow is a simpler version of Flex column.
• The Grid setting doesn’t have those settings, but the inner sections (flex columns or flex row) do have them.
• Note: vertical en horizontal alignment overrule every individual alignment setting you apply to a block, unless you select horizontal alignment stretch (full width).

Vertical alignment

• Top
• Middle
• Bottom
• Stretch (equal height)
• Space between
• Space around
• Space evenly

Horizontal alignment

• Left
• Center
• Right
• Space between
• Space around
• Space evenly

• By default every new Flex row section is set to Stretch (equal height) and Left. That means that:
  • All inner sections will have equal height.
  • Content directly placed in the Flex row will have left alignment.
• The sections inside the Flex column section are by default standard flow sections.
  • In a flow section all blocks start sticky at the top and are aligned left.
  • If you want that differently, transform the flow section to a Flex column so all vertical en horizontal alignment settings become available..
• By default every new Grid section is set to Stack on mobile, Top and Left. That means that:
  • The blocks in a grid column start ‘glued’ against the top of the section.
  • The blocks are left aligned.
  • All sections (flow by default) placed in the grid columns will have equal height.

Section content alignment change

• A row block has to be transformed to a Flex column to get these settings.
• Just change left to center or right; all blocks will align accordingly.

Give every block in a section its own alignment:

• This is possible only in Flex column sections.
• Set horizontal alignment to Stretch (full width).
• You can give every block an individual alignment.

Section Visibility settings

• The Flexible Layout Section has 2 kinds of visibility settings.

Visibility device

• You can decide to show or hide on desktop, tablet, and mobile.
• Both the Grid and Flex row recalculate the width when a grid-item or Flex row item is hidden and reflow.

Visibility Display conditions

Inner section settings

• When you created a complete section layout, or even an advanced bento layout and you want to change some visual aspects of the inner sections, like background color, border width, border color or even the corner radius. Ypi can do this one by one or use the ‘Inner section settings.’ Activating it shows a small popup; you enter the values and click on Apply. Done, all at once. Empty values are not applied, so existing settings are kept.

Other site-wide defaults

The settings page is secured and accessible only to the website admin. This prevents another user from changing the settings, which could cause the layout of not only new but also existing sections to change completely.

Those settings are to be found on the settings tab, not the block settings

• On the settings page you can set settings that are applied site-wide and for all new and existing Flexible Layout Sections.
• Values set in the block settings are never overwritten and always remain the same when changing the site-wide settings.
• The side-wide settings are:

Default custom max width

• Fallback for custom inner content width.

Default padding

• Applied to all sections unless overridden in the block.

Default margin

Applied to all sections unless overridden in the block.

Tablet and mobile breakpoints

• Control when responsive overrides and Order mobile take effect.

Root-padding compensation

Almost every theme and many row or group blocks have content jumping between full-width and wide content (Kadence, Greenshift, Core Gutenberg blocks, 2525 theme, etc.). Wide content is, after all, not an absolute value! It is visible in a standard desktop or tablet view and becomes extremely distracting on mobile, because some sections start neatly on the left while others have a significant distance to the edge. We have corrected this for those users who find the alignment jumping undesirable from a design perspective. Set it to 0 in the settings to prevent it from being applied. You can also turn it on and off as desired, as it can be disabled per block (default is active).

• Compensate root padding insets in the full-width shell so the content edges of a full-width section match the wide width.
• 3 separate values: desktop, tablet and mobile.

Example root-padding compensation values

• Ollie 45/38/30 px
• Kadence 130/25/27 px

Default gap

• Space between inner sections.
• This gap is automatically applied to every new and existing section.
• Applies to horizontal and vertical gaps.
• This value will never overwrite manual block settings.

Examples

The examples can help you and are illustrative to show how easy the Flexible Layout Section works.

FAQs
